FINECO OA Office Raised Floor System
Modular Access Flooring rau Cov Chaw Ua Haujlwm Niaj Hnub No thiab Kev Tswj Cable
FINECO OA Raised Pem Teb System yog ib qho kev daws teeb meem hauv pem teb uas tsim los rau cov chaw ua lag luam, cov ntaub ntawv -cov chaw ua haujlwm nyob ib sab, thiab cov chaw lag luam uas xav tau lub zog hauv qab, cov ntaub ntawv, thiab cov kev pabcuam hauv tsev.
Lub kaw lus siv siab - lub zog modular vaj huam sib luag txhawb nqa los ntawm kev hloov kho steel pedestals los tsim kom muaj kev pabcuam tsis muaj. Cov vaj huam sib luag ntawm tus kheej yog tshem tau yooj yim, ua rau kev teeb tsa ceev ceev, kev saib xyuas, thiab kev teeb tsa chaw ua haujlwm yav tom ntej.
Technical Specifications
|
Parameter |
Specification |
|
Yam khoom |
OA Office Raised Floor System |
|
Txheem Vaj Huam Sib Luag Loj |
600 × 600 hli |
|
Vaj Huam Sib Luag Thickness |
28mm / 30mm / 35mm (Model-nyob ntawm) |
|
Cov khoom siv tseem ceeb |
Calcium Sulphate / Cementitious / Txhua -Steel Welded Siv |
|
Pedestal Khoom |
High-Qib Txias-Rolled Steel (Zinc Plated / Powder Coated) |
|
Ua tiav Floor Height (FFH) |
100mm txog 500mm |
|
Concentrated Load |
Ntsuas txog 3.0 kN txog 4.5 kN (CISCA / EN 12825) |
|
Uniform Load |
8.0 kN / m² - 12.0 kN / m² |
|
Kev ua yeeb yam hluav taws |
Class A Tsis yog{0}} combustible core |
|
Ua raws |
Ua haujlwm raws li CISCA thiab EN 12825 tus qauv |
Cov txiaj ntsig tseem ceeb
Efficiency Cable Management:Ncua thiab teeb tsa lub zog, cov ntaub ntawv, thiab cov kab sib txuas lus hauv qab hauv pem teb tiav.
Flexible Reconfiguration:Tso cai rau kev hloov pauv kev hloov pauv sai hauv - npaj chaw ua haujlwm thiab chaw ua haujlwm dynamic.
Kev tu yooj yim:Cov vaj huam sib luag ntawm tus kheej tuaj yeem nqa tau tam sim ntawd yam tsis muaj kev cuam tshuam hauv pem teb uas nyob ib sab.
Precision Modular Grid:600 × 600 mm txheem vaj huam sib luag-thiab- qauv pedestal adjustable kom meej pem teb qhov siab.
Office Renovation Friendly:Ua kom niaj hnub kev txhim kho kev txhim kho hauv cov tsev uas twb muaj lawm yam tsis muaj kev tsim kho hnyav.
Nto Versatility:Tau tshaj liab qab, ntaub pua plag, PVC, yas, los yog HPL tiav.
Cov qauv khoom

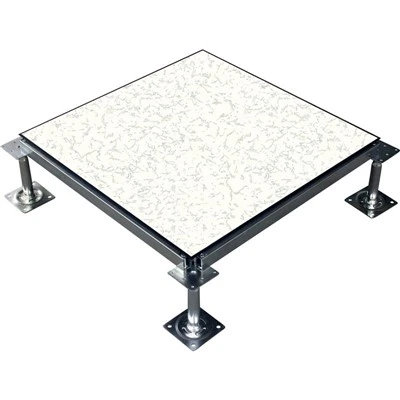

Raised Floor Vaj Huam Sib Luag:High -cov tub ntxhais qhov ntom ntom ua rau qhov chaw taug kev thiab hloov cov khoom thauj mus rau daim phiaj txhawb nqa.
Adjustable Steel Pedestal:Electro-galvanized los yog pleev xim rau steel Cheebtsam tsim qhov siab hauv pem teb thiab subfloor them.
Stringer System:Kev xaiv snap- ntawm lossis bolted steel rails rau kev txhim kho lateral stability nyob rau hauv siab - qhov siab los yog siab - load daim ntaub ntawv.
Underfloor Service Void:Ntxuav, siv tau channel rau kev tsim khoom siv hluav taws xob thiab cabling.
Kev Txhim Kho & Kev Txhawb Nqa
Standardized Sequence:Subfloor tshuaj xyuas → Laser-leveled grid layout (600 × 600 mm) → Pedestal positioning → Height adjustment & stringer fixation → Panel alignment & level verification.
Kev Pabcuam:Cov lus qhia ntxaws txog kev teeb tsa thiab CAD lub khw kos duab muab. Kev taw qhia kev yees duab nyob deb lossis ntawm -kev saib xyuas engineering hauv thaj chaw muaj rau cov haujlwm loj thoob ntiaj teb raws li kev thov.
Tej kev siv
Corporate Headquarters & Commercial Offices:Ntxuav, teeb tsa lub zog hauv qab thiab cov ntaub ntawv routing rau cov qauv thiab cov thawj coj ua haujlwm.
Qhib -Plan & Agile Workspaces:Adaptable muab kev pabcuam faib tsim los rau kev hloov chaw ntawm lub rooj thiab hloov layout.
Call Centers & Financial Trading Floors:High -nruab nrab qhov chaw ua haujlwm qhov chaw ua haujlwm txhawb nqa kev sib txuas lus dav dav thiab kev xav tau ntawm cov cabling.
Commercial Building Refurbishments:Txhim khu kev txhim kho zoo hauv cov qauv uas twb muaj lawm yam tsis muaj qhov hnyav hauv pem teb - theem kev tsim kho.
Kev Muag Khoom & Ordering Checklist
Kom tau txais qhov tseeb thiab kev sib tw qhov project hais, thov xa:
Qhov Chaw Nres Nkoj & Qhov Chaw Ua Haujlwm
Tag nrho pem teb cheeb tsam (m² / sq. ft.)
Yuav Tsum Tau Ua tiav Pem Teb Qhov siab (FFH)
Cia siab tias Load Ratings / Chaw Haujlwm Hom
Surface Finish & Accessories (xws li, pem teb thawv, grommets)
Project Timeline & Architectural Drawings (yog muaj)
Cov lus nug nquag
Q: Cov qauv dab tsi ua FINECO tsa cov plag tsev ua raws li?
A: Cov txheej txheem tau tsim thiab sim ua raws li CISCA thiab EN 12825 cov qauv thoob ntiaj teb.
Q: Koj puas muab kev them nyiaj yug txawv teb chaws?
A: Yog. Peb muab cov lus qhia txog kev teeb tsa thiab cov duab kos rau hauv khw rau txhua qhov kev txiav txim, nrog rau ntawm -kev saib xyuas engineering muaj rau cov phiaj xwm loj -.
Q: Lub sij hawm ua tus txheej txheem ntau lawm yog dab tsi?
A: Cov txheej txheem tsim khoom siv sijhawm 15 mus rau 25 hnub, nyob ntawm qhov project scale thiab customization xav tau.
Q: Cov ntaub pua plag puas tuaj yeem ntsia ncaj qha?
A: Yog lawm, panels txhawb ob leeg liab qab - vaj huam sib luag chaw teeb tsa thiab lub Hoobkas - cov ntaub pua plag lag luam laminated tiav.
