FINECO Steel Cementitious Data Center Raised Floor
Hnyav-Lub luag hauj lwm Raised Access Flooring rau Server Rooms, Data Centers & IT Equipment Spaces
FINECO Steel Cementitious Raised Access Floor yog ib qho kev tsim qauv tsim rau cov chaw zov me nyuam cov ntaub ntawv, cov chav neeg rau zaub mov, cov chaw tswj, thiab cov chaw ua haujlwm uas cov khoom siv hnyav thauj khoom, kev tswj kav cabling, ESD tswj, thiab kev pabcuam kev pabcuam yog qhov tseem ceeb.
Lub kaw lus sib txuas ua ke lub plhaub tsim steel nrog cov tub ntxhais cementitious thiab adjustable steel pedestal understructure. Nws muab cov kab noj hniav ruaj ntseg rau lub hwj chim thiab cov ntaub ntawv routing thaum tso cai rau ib tug neeg panels yuav tsum tau lifted rau tu thiab yav tom ntej hloov.
Product Overview
Steel Cementitious Data Center Raised Pem Teb yuav tsum txhawb nqa cov khoom siv kom muaj zog, tswj cov qauv kev ruaj ntseg, thiab sib koom ua ke nrog cov kev cai thermal thiab hluav taws xob. FINECO steel-cementitious systems yog tsim los ua kom tau raws li cov qauv thoob ntiaj teb, suav nrog CISCA thiab EN 12825 specifications.

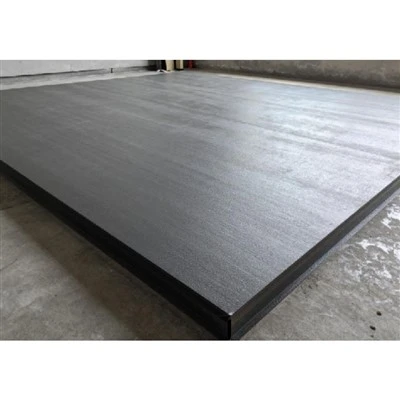

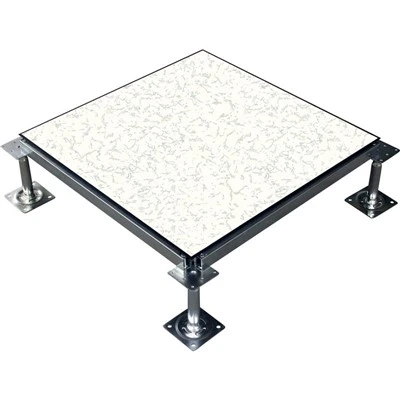

Panels consist of a welded steel structure filled with a high-density cementitious core, supported by an adjustable pedestal and stringer grid. Kev ua tiav saum npoo yog tsim raws li qhov yuav tsum tau ua, suav nrog kev tiv thaiv - zoo li HPL thiab cov khoom siv PVC.
Technical Specifications
|
Parameter |
Configuration Detail |
|
Yam khoom |
Steel Cementitious Raised Access Floor |
|
Cov ntawv thov tseem ceeb |
Server Rooms, Data Centers, Control & Telecom Rooms |
|
Txheem Vaj Huam Sib Luag Loj |
600 × 600 mm (Kev cai qhov ntev muaj) |
|
Kev tsim vaj huam sib luag |
Tsim Hlau Plhaub + Cementitious Core |
|
Kev Ua Raws Cai |
CISCA, EN 12825, ISO 9001 |
|
Nto tiav |
Anti-Static HPL, Conductive PVC, Vinyl, Liab qab / Coated Steel |
|
Load Capacity Qib |
Lub teeb, Nruab Nrab, Hnyav, thiab Ntxiv -Hnyav Lub Luag Haujlwm (Concentrated loads txog 4.5 kN+) |
|
Understructure |
Adjustable Steel Pedestal + Hnyav -Lub luag haujlwm Stringer Grid |
|
Ua tiav Floor Height (FFH) |
Qhov project-dependent (150 mm txog 1000 mm+) |
|
Kev ua yeeb yam hluav taws |
Chav Kawm A / Tsis yog - cov kev xaiv tseem ceeb uas muaj hluav taws kub muaj |
|
Export Ntim |
ISPM15 cua sov- kho ntoo pallets nrog ntug kev tiv thaiv |
Cov khoom tseem ceeb zoo
Siab Load-Bearing Capacity:Engineered rau hnyav neeg rau zaub mov racks, network txee, thiab UPS units thaum sib xws nrog cov chav kawm load.
Stable Composite Structure:Lub plhaub sab nrauv muab cov qauv kev ncaj ncees, thaum lub hauv paus cementitious tshem tawm cov suab nrov, ntxiv cov huab hwm coj, thiab ua kom ntev - lub sij hawm seem stability.
Accessible Service Cavity:Lub rooj sib tham tau txhawb nqa lub zog, cov ntaub ntawv, thiab kev sib txuas lus cables thaum ua kom cov txheej txheem nkag mus tau rau kev hloov kho.
ESD Kev Ua Haujlwm:Kev xaiv ntawm qhov chaw tiv thaiv thaj tsam li ntawm 10⁶ txog 10⁹ ohms siv los tiv thaiv - zoo li qub HPL lossis cov khoom siv PVC tiav.
Load Capacity & Structure Performance
Technical ib puag ncig muaj kev ntxhov siab ntau yam uas dhau mus dhau qhov sib npaug sib npaug. Kev xaiv qhov system yuav tsum suav rau ntau yam kev thauj khoom:
Concentrated Load:Ntsuas kev ua tau zoo hauv qab taw taw thiab cov ntsiab lus hauv txee (feem ntau kuaj ntawm 2.5 kN txog 4.5 kN +).
Uniform Distributed Load (UDL):Ntsuas tag nrho cov vaj huam sib luag saum npoo rigidity thiab qhov hnyav faib.
Rolling Load:Tseem ceeb heev rau cov chaw zov me nyuam tuav cov tsheb thauj neeg mob hnyav thiab hloov tshuab.
Impact & Ultimate Load:Cov nyiaj rau dynamic installation shocks thiab structural kev ruaj ntseg margins tshaj qhov pib ua hauj lwm.
Khoom Siv Khoom & Kev Pabcuam Hauv Qab
Lub hom phiaj Technical Environments
Data Centers & Server Rooms:Txhawb siab -cov neeg rau zaub mov racks thiab cov txheej txheem cable txoj hauv kev.
Telecommunications & Network Hubs:Tswj cov txheej txheem ntawm fiber ntau optic thiab siab - cov kab sib txuas ceev.
Tswj Chav & 24/7 Saib Xyuas Chaw:Muab qhov ruaj khov, kev co- tiv thaiv hauv pem teb rau kev tswj consoles thiab cov chaw ua haujlwm.
UPS & Roj teeb Backup Chav:Heavy-load configurations engineered rau hnyav hluav taws xob cov khoom thiab roj teeb cia txee.
Cable Management & Cooling Integration
Lub subfloor kab noj hniav ua haujlwm raws li kev pabcuam plenum rau siab - lub zog ceev thiab fiber ntau - kev ua haujlwm kho qhov muag. Rau kev tswj xyuas thermal, cov khoom vaj huam sib luag sib txuas ua ke nrog perforated airflow panels los txhawb UFAD cua txias architectures.
Quality Assurance & Tom qab -Kev Pabcuam Muag
Manufacturing Quality Control
- Raw Material Verification: Cov khoom txias tuaj- dov steel yog nruj me ntsis kuaj xyuas qhov tuab, lub zog, thiab tshuaj muaj pes tsawg leeg.
- Precision Forming & Filling: Automated stamping thiab tswj kev txhaj tshuaj cementitious kom ntseeg tau tias lub vaj huam sib luag tseem ceeb ntom ntom thiab kev ua haujlwm ruaj khov.
- Batch Testing: Kev tshuaj xyuas tsis tu ncua ntawm load deflection, nto flatness, thiab hluav taws xob tsis kam raws li CISCA thiab EN 12825 tus qauv ua ntej xa.
Ua tiav Tom qab -Kev cog lus muag
- Kev Taw Qhia: Cov duab kos duab nthuav dav hauv khw, phau ntawv qhia kev teeb tsa, thiab kev pabcuam chaw taws teeb engineering muab rau cov neeg ua haujlwm hauv tsev.
- Kev Tiv Thaiv Kev Tiv Thaiv: Tus qauv tsim thiab kev tsim khoom tsis raug lees paub los ntawm kev txhawb nqa B2B qhov project.
- Kev Pabcuam Hloov & Spares: Npaj kom muaj cov khoom muag rau kev sib txuam panels, pedestals, thiab accessories los txhawb kev nthuav dav rau yav tom ntej.
Cov lus nug nquag
Q: Puas yog steel cementitious tsa cov plag tsev tsim nyog rau chav neeg rau zaub mov?
A: Yog. Lawv tau tsim tshwj xeeb rau cov kev kawm ib puag ncig uas xav tau kev thauj khoom siab -cov kabmob muaj peev xwm, kev tswj xyuas hauv qab hauv qab, thiab kev pabcuam kev pabcuam.
Q: Qhov hnyav npaum li cas tuaj yeem txhawb nqa hauv pem teb?
A: Lub peev xwm thauj khoom sib txawv raws qib, txhawb nqa cov ntsiab lus tseem ceeb ntawm 2.5 kN txog 4.5 kN + (lossis kev cai hnyav -cov haujlwm tshwj xeeb) kom haum rau cov neeg rau zaub mov hnyav thiab UPS kho vajtse.
Q: Puas tuaj yeem tiv thaiv - zoo li qub (ESD) tiav tuaj yeem kho tau?
A: Yog. Cov kab ke tuaj yeem ua lub Hoobkas- ua tiav nrog cov tshuaj tiv thaiv - zoo li HPL lossis cov khoom siv PVC lub rooj sib tham nruj cov hluav taws xob tsis zoo (10⁶ txog 10⁹ ohms).
Q: Puas tuaj yeem airflow panels sib xyaw ua kom txias?
A: Yog. Perforated panels lossis airflow grilles tuaj yeem sib txuas ua ke rau hauv daim phiaj hauv pem teb rau Underfloor Air Distribution (UFAD) systems.
Q: Tus qauv vaj huam sib luag yog dab tsi?
A: Tus qauv loj yog 600 × 600 mm, nrog rau kev cai qhov ntev muaj raws li qhov yuav tsum tau ua.
