Steel Cementitious Ventilated Raised Pem teb
Siab -Load Ventilated Raised Access Flooring rau Cov Chaw Cov Ntaub Ntawv & Cov Chaw Tseem Ceeb
FINECO Steel Cementitious Ventilated Raised Floors yog tsim los rau lub hom phiaj - ib puag ncig tseem ceeb uas yuav tsum tau muaj kev txhawb nqa zoo nrog rau qhov tseeb - tswj cov cua hauv qab. Combining a formed steel panel shell with a high-density cementitious core, the system offers a durable modular platform with customizable ventilated panels (600 × 600 mm) designed to optimize thermal management, equipment weight distribution, and underfloor service access.
Technical Specifications
|
Performance Parameter |
FINECO Specification |
|
Vaj Huam Sib Luag Dimensions |
600 × 600 × 30 / 35 hli |
|
Cov khoom siv tseem ceeb |
Siab -Density Cementitious Infill |
|
Dawb -Air Open Area |
18%, 25%, 32% (Txog 38% ntawm kev thov) |
|
Airflow Control |
Optional mechanical zawv zawg dampers |
|
Concentrated Load |
3.0 kN txog 4.5 kN (Qib A / B) |
|
Uniform Load |
Ntau dua lossis sib npaug li 15,000 N / m² |
|
Qhov kawg Load |
Ntau dua lossis sib npaug ntawm 9.0 kN txog 13.5 kN |
|
Rolling Load Test |
Pass (10,000 dhau mus txog 2.5 kN caster log) |
|
Max Deflection |
Tsawg dua los yog sib npaug li 2.0 mm nyob rau hauv kev ua haujlwm load |
|
Surface Resistance |
1 × 10⁶ txog 1 × 10⁹ Ohms (Anti-Static HPL) |
|
Kev faib hluav taws kub |
Chav Kawm A1 (Core) / Nplaim Spread Index Class 0 (Nto) |
Cov qauv khoom
Composite Plhaub:Tsim cov qib siab - qib steel sab saum toj thiab hauv qab cov nplooj ntawv encasing lub hauv paus tseem ceeb los tiv thaiv kev cuam tshuam thiab ib puag ncig hnav.
Internal Core:Nthuav cementitious compound filling uas txhim kho qhov ruaj khov thiab txo qis hauv pem teb kev co.
Load Transfer Design:Integrated welded steel reinforcements uas ncaj qha concentrated thiab dov loads mus rau lub pedestal kev txhawb nqa.

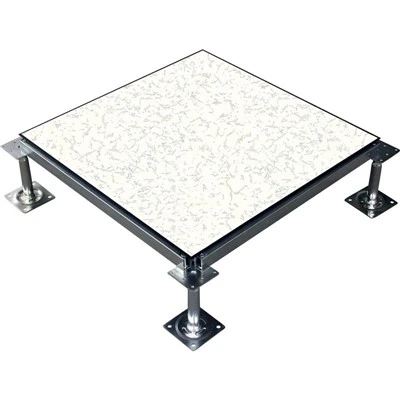

Substructure System:Hnyav-lub luag haujlwm kho tau steel pedestals thiab stringers uas tsim kom muaj kev ruaj khov, theem kev pabcuam hauv qab.
Khoom zoo
Composite Structural Rigidity:Built with formed high-grade steel shells and a dense cementitious core, preventing deformation and ensuring long-term load stability.
Precision Airflow (UFAD):Customizable qhib- cheeb tsam qhov cua (18% txog 35%) xa cov cua txias ncaj qha mus rau siab- thaj chaw cua sov kom ua kom zoo dua PUE.
Modular Mixed Layout:Tso cai rau seamless ua ke ntawm cov khoom thiab qhov cua tshuab, yoog tau yooj yim rau kev hloov cov neeg rau zaub mov kub nrog kev xaiv cov neeg kho tshuab dampers.
Hnyav -Lub Luag Haujlwm Load Capacity:Engineered rau siab - ib puag ncig ceev, muab txog 4.5 kN concentrated load thiab 13.5 kN qhov kawg load kev ua tau zoo.
Kev Tswj Xyuas Zoo
Raw Material Inspection:Cov khoom siv nruj nruj ntawm cov ntawv steel thickness, core ntom, thiab nto laminate zoo.
Dimensional Precision:Automated thiab phau ntawv txheeb xyuas kom paub meej 600 × 600 mm vaj huam sib luag tolerances, flatness, thiab squareness.
Kev Ntsuam Xyuas Kev Ua Haujlwm Zoo:Kev kuaj lub Hoobkas ua haujlwm suav nrog cov khoom hnyav, dov load, airflow efficiency, thiab hluav taws xob tsis kam.
Kev Tshawb Fawb Txog Kev Ua Raws Cai:Cov txheej txheem kev lees paub zoo ua raws li cov qauv ntsuas thoob ntiaj teb xws li CISCA thiab EN 12825 cov lus qhia tshwj xeeb.
Cov khoom siv
Data Centers & Cloud Facilities:Kev faib tawm cua hauv qab, txias -aisle ntim, thiab kev txhawb nqa hnyav.
Telecom & Network Hubs:Khoom siv thauj khoom- bearing thiab tsom thermal tswj rau server thiab hloov chav.
Control & Command Rooms:Integrated cable tswj thiab ruaj, ergonomic flooring rau 24/7 technical ib puag ncig.
Precision Labs & Technical Facilities:Kev huv thiab tswj ib puag ncig yuav tsum muaj kev tawm dag zog zoo li qub thiab kev tswj hwm ib puag ncig.
Tom qab -Kev Pabcuam Muag & Txhawb
FINECO muab kev qhia thoob ntiaj teb tom qab- kev muag khoom txhawb nqa kom ntseeg tau tias kev ua tiav qhov project tsis sib haum thiab ua haujlwm ntev - lub sijhawm ua haujlwm:
Kev Taw Qhia:Cov ncauj lus kom ntxaws txog kev teeb tsa, cov yeeb yaj kiab qhia, thiab kev pab cuam hauv chaw taws teeb rau cov chaw teeb tsa.
Warranty Coverage:Standard chaw tsim tshuaj paus warranty npog structural kev ncaj ncees, core kev ua tau zoo, thiab nto laminate durability.
Hloov & Spare Parts Kev them nyiaj yug:Dedicated muab kev hloov pauv vaj huam sib luag, pedestals, thiab accessories rau yav tom ntej layout expansions lossis tu.
Responsive Communication:Ceev- taug qab kev txhawb nqa engineering thiab kev thauj mus los los daws qhov kev tshaj tawm - xa lossis nug kev teeb tsa tam sim.
Cov lus nug nquag
Q: Puas tuaj yeem siv cov pa cua thiab cov khoom siv ua ke hauv tib txoj haujlwm?
A: Yog. Ib qho kev sib xyaw ua ke sib xyaw ua ke ntawm cov khoom siv thiab qhov cua tshuab yog cov qauv kev coj ua kom ncaj qha cov cua ntws ncaj qha mus rau qhov siab - tshav kub neeg rau zaub mov thaum ua kom tsis muaj - thaj chaw tseem ceeb.
Q: Puas yog qhov cua nkag tau hloov tau?
A: Tus qauv qhov cua ntawm qhov nruab nrab ntawm 18% mus rau 35% raws li kev tsim vaj huam sib luag, thiab xaiv cov khoom siv zawv zawg dampers tuaj yeem ntxiv rau kev tswj cov cua ntws.
Q: Dab tsi ua raws li cov qauv FINECO tsa pem teb ua tau raws li?
A: Peb cov tshuab tau tsim ua raws li cov qauv ntsuas thoob ntiaj teb, suav nrog CISCA thiab EN 12825 cov lus qhia tshwj xeeb.
Q: Cov ntaub ntawv dab tsi yog muab rau kev txiav txim?
A: Peb muab cov ntaub ntawv qhia dav dav, cov lus qhia kev teeb tsa, kev pab CAD layout, thiab cov ntaub ntawv qhia txog lub Hoobkas (load, hluav taws, thiab ESD) raws li kev thov.
